Step 11 of 21

Step 11

Check it's parallel

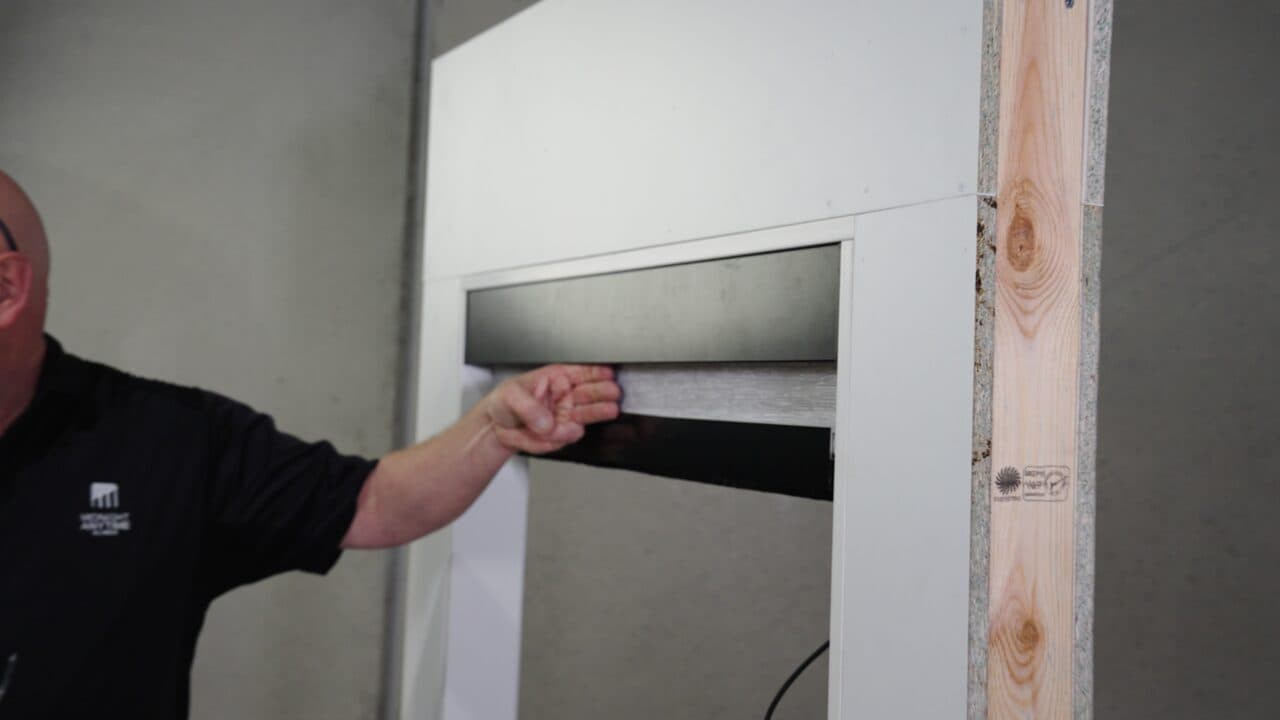

Photo: checking the side gap between the blind and the reveal.
Photo: checking the side gap between the blind and the reveal.
  1. Check the blind hangs parallel with the reveal. You want a 15 to 20mm gap down each side so the fabric doesn't catch the side tracks.
  2. The bottom bar should sit parallel with the window sill too.
  3. If it's a long way out and you've got room, take the blind out and drop a bracket on either side to straighten it.
Recommended troubleshootingCommon questions for this step

How much side gap should there be?

About 15 to 20mm each side, so the blind clears the side tracks. Getting it parallel matters more than the exact number.

Video guideWatch the full walkthrough
