Step 6

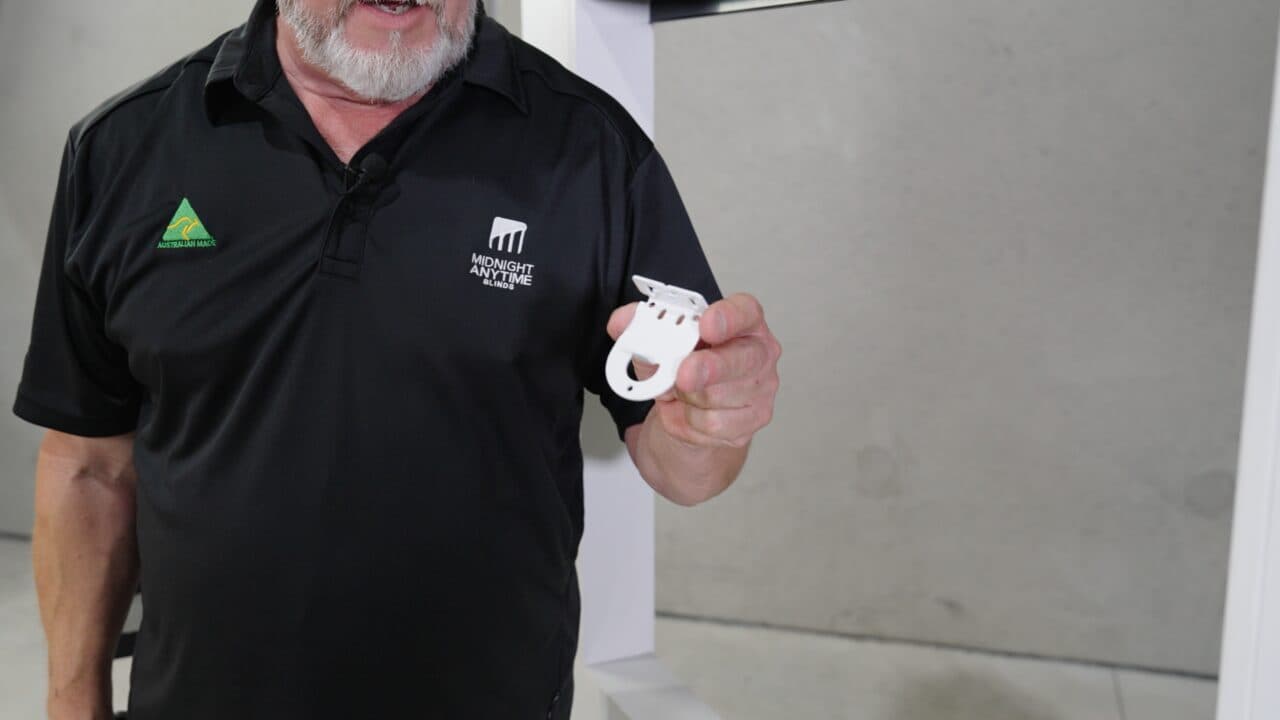

Fit the motor-drive bracket — right side
- Now the motor-drive side on the right.
- If you need more flex to line it up, loosen the middle pelmet screw slightly, then retighten once it's set.
- The holes are pre-drilled to match. Two screws in, then one out to the side once you're happy.
Recommended troubleshootingCommon questions for this step
What's different about the two brackets?
The motor-drive bracket has a tongue that engages the motor; the pin bracket has a spring-loaded pin. They are not interchangeable.
My motor's on the wrong side.
On a standard flush mount it's on the right. If yours came reversed, swap the brackets so the tongue is on the motor side — or send us a photo through the support form.
If you hit a snag
Bracket holes don't line up.
You're probably on the wrong side — swap it with the pin-side bracket.
