Step 7
Install the blind

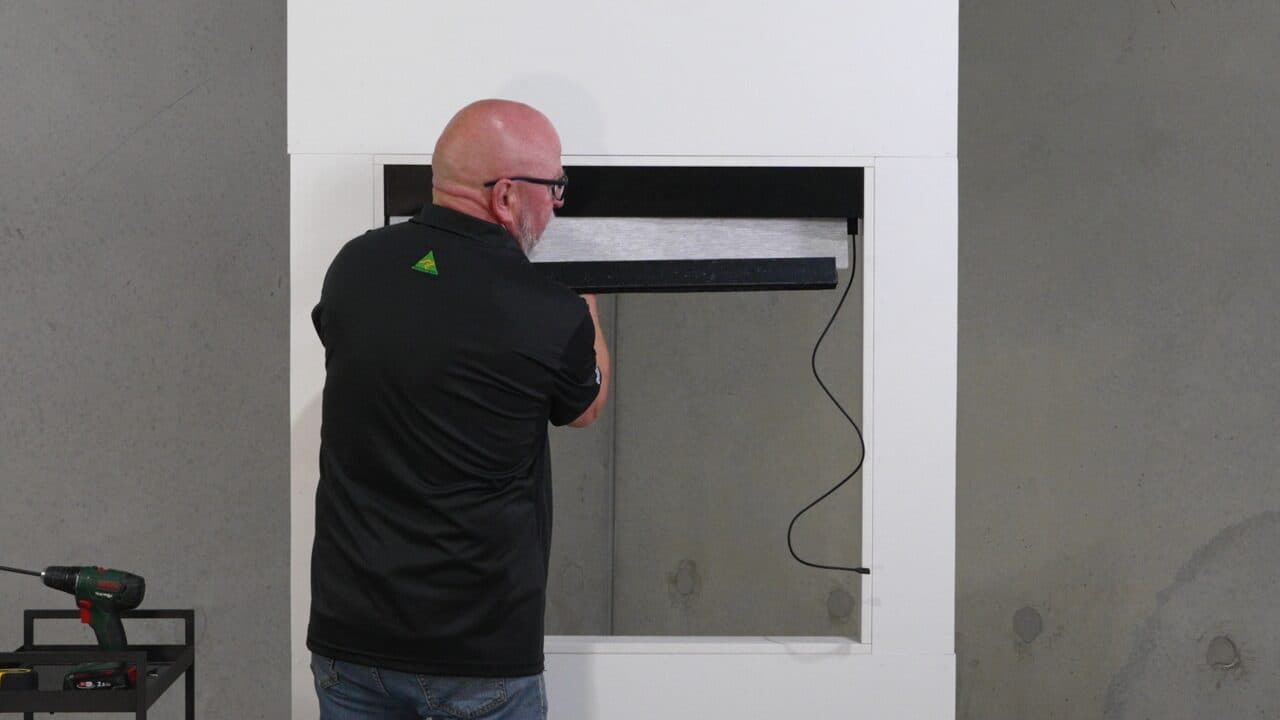

- Put the charge cable into the motor first, and run it down the right-hand side track with the foam retainers. With the cable hanging straight you can line the blind up even when you can't see the bracket.
- Offer the blind up. The drive side goes in first — push until you feel it click in.
- Release the pin on the left-hand side to lock that end in.
Recommended troubleshootingCommon questions for this step
Why put the cable in first?
It plugs into the motor and hangs straight down, so it lines the motor up with the bracket even when the bracket is out of sight.
If you hit a snag
The blind won't seat.
Check the drive side is clicked in before you release the pin. Don't force it — recheck the bracket alignment.
